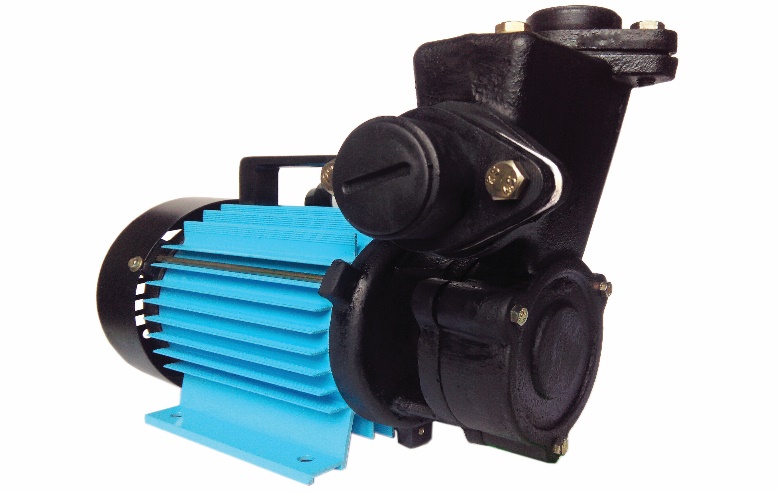

// Self Priming Pumps //

Features:

Lower power consumption

Noiseless Operation

Longer working life

More water discharge in its class

No need to fit foot valve.

MSP 51

Specification:

Power Range: 0.5 HP-1.0HP

Supply Voltage: 230V Single Phase,

RPM: 2800

Application:

Domestic Use

Gardening.

Pressure Boosting System

MSP 101

Performance chart:

Model	KW / HP	PIPE SIZE in (MM)	HEAD in (meters)	6	10	16	20	24	28	32	36	40	44	50	45	50	54	58
JALDHARA II	0.37 / 0.5	25 x 25	DISCHARGE IN LPH	2300	2100	1600	1300	1100	750			33mtr Shut-off
MSP50	0.37 / 0.5	25 x 25		2600	2200	1900	1600	1300	1000	700				35mtr Shut-off
MSP51	0.55 / 0.75	25 x 25		3300	2700	2300	2000	1600	1250	1000	400			38mtr Shut-off
JALDHARA I	0.75 / 1.0	25 x 25		3400	2900	2700	2300	2000	1600	1300	600	250			43mtr Shut-off
MSP101	0.75 / 1.0	25 x 25		3700	3150	2900	2820	2640	2200	2100	1950	1750	1550	1400	1020	720	550	0

MITHILA PUMPS PVT LTD, established in Ahmadabad, (Gujarat) in 1983 for BOREWELL & OPENWELL submersible in 2001 MONOBLOCK series Coimbatore, (TAMILNADU).
